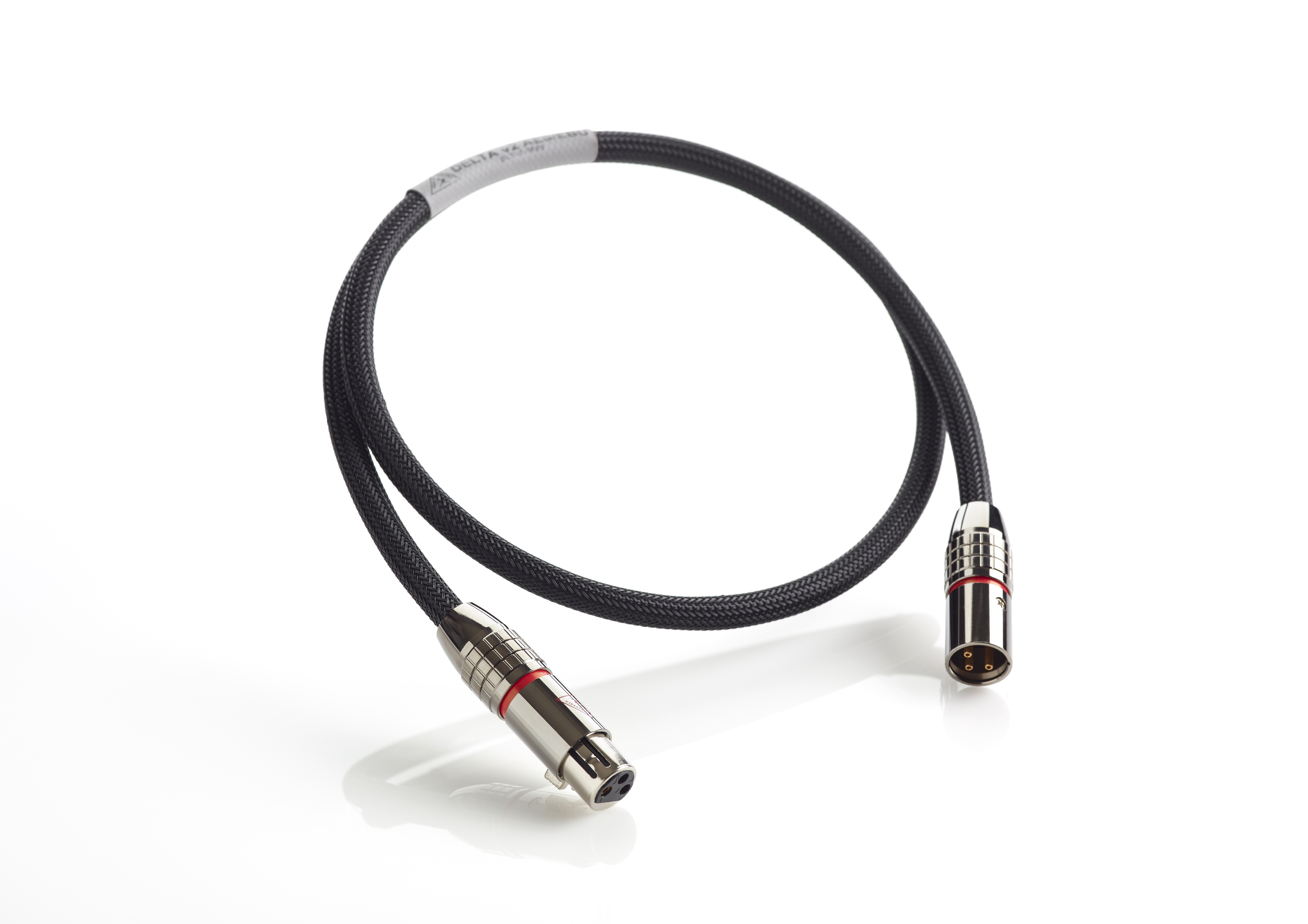

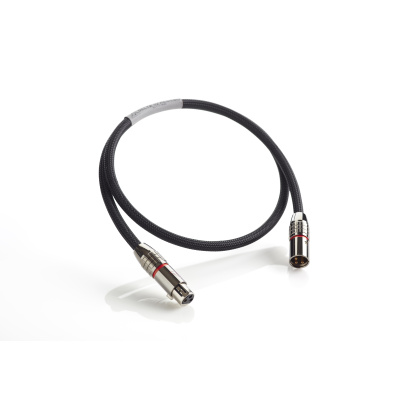

Shunyata Research Delta V2 AES/EBU Digital Cable

Shunyata Research digital cables are produced using a ‌Precision Matched Z (‌‌PMZ) concept. This means that tolerances of the conductor surface, dielectric extrusion, and the precision of the braided shield are held to minute variances. To achieve these tight tolerances, the extrusio ...Read more

Shunyata Research digital cables are produced using a ‌Precision Matched Z (‌‌PMZ) concept. This means that tolerances of the conductor surface, dielectric extrusion, and the precision of the braided shield are held to minute variances. To achieve these tight tolerances, the extrusion and braiding machines must be run at one-quarter speed during the manufacturing process. The result is better performance through a reduction of cable-induced ‘signal jitter’. (Note: Z means impedance)

Manufacturer Site Link: Shunyata Research

Brand: Shunyata Research £ 900.00

Description
Specifications
Video
Downloads
Reviews
Related Products

ArNi® is a type of wire created by Shunyata Research designed to be the finest quality wire available for audio purposes. It begins with the highest purity of copper available – OFE C10100 or Ohno (single crystal). Then it is formed in virtual hollow tubes eliminating skin effects and eddy current distortions. In addition, the wire undergoes our proprietary KPIP™ process.

Shunyata Research’s exclusive ‌VTX™ conductors are made in the shape of virtual tubes. The core of the conductor is completely hollow minimizing skin effects and random eddy currents. They are produced using OFE Alloy-101.

PMZ Connectors

Pulse timing is critical to digital transmission accuracy. It is critical that a digital connector’s impedance precisely match the cables's characteristic impedance. A mismatched connector will create signal reflections which increases digital jitter or phase noise. A 50-ohm cable requires a 50-ohm termination — not the commonly used 75-ohm connector. Shunyata Research is careful to ensure that every cable and connector are precisely matched for a seamless component to component connection.

Brand URL : https://shunyata.com

Cable Type: PMZ twin-axial

Conductors: ArNi ^® / VTX / Ohno / OFE

Dielectric: fluorocarbon

Characteristic Impedance: 110 ohms

Connectors: SR-XLRa-110

CMODE Modules: NA

KPIP Processing: 4-days

Length: 1.00 meters

Safety Assurance:
Continuity and polarity tests – by two technicians
HiPOT tests insulation breakdown @ 1,200 VAC
