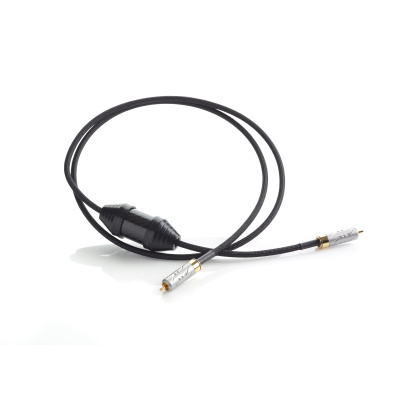

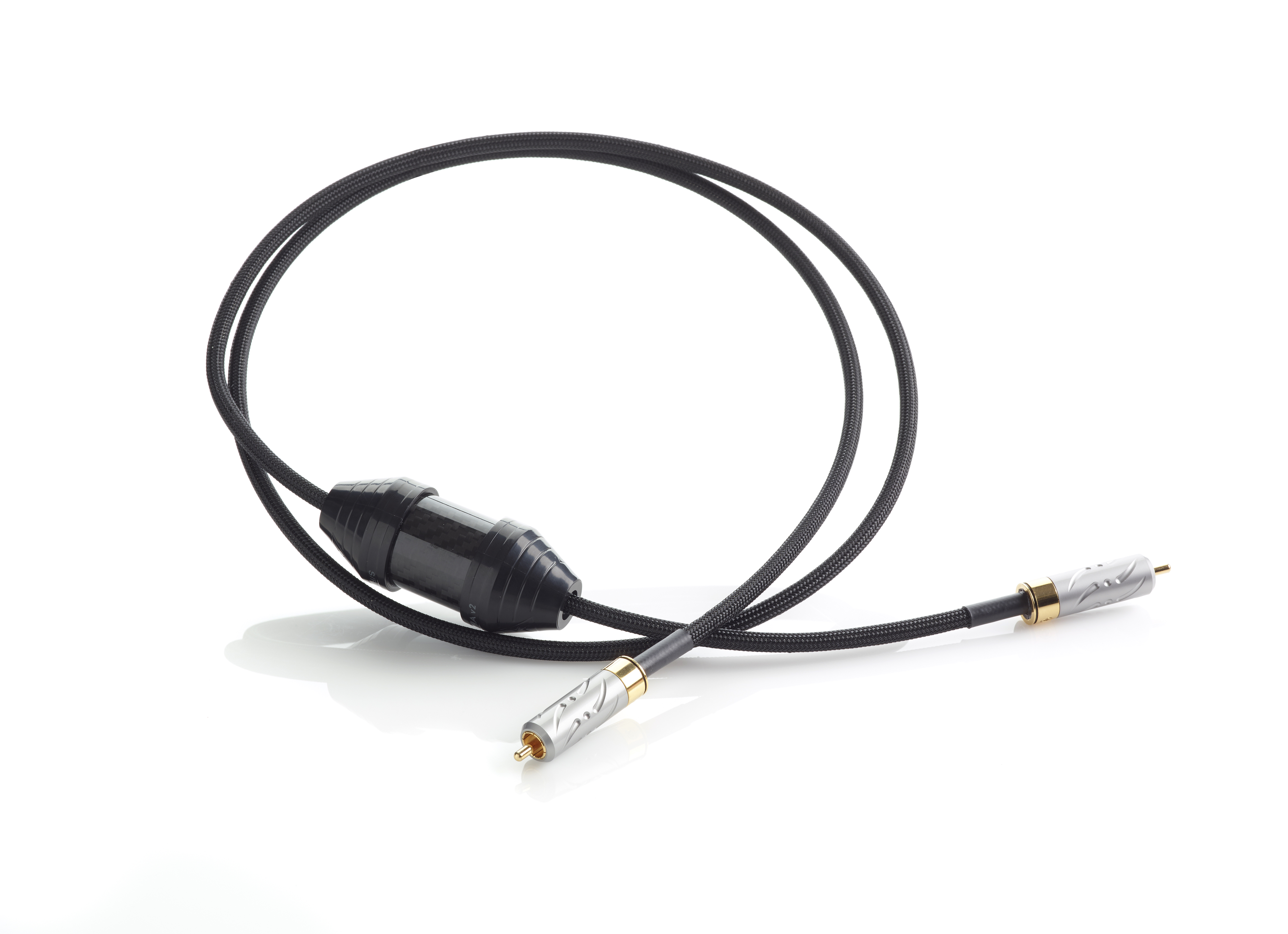

Shunyata Research Alpha V2 SPDIF Digital Interconnect

alpha_v2_spdif
Shunyata Research digital cables are produced using a ‌Precision Matched Z (‌‌PMZ) concept. This means that tolerances of the conductor surface, dielectric extrusion, and the precision of the braided shield are held to minute variances. To achieve these tight tolerances, the extrusio ...Read more

Shunyata Research digital cables are produced using a ‌Precision Matched Z (‌‌PMZ) concept. This means that tolerances of the conductor surface, dielectric extrusion, and the precision of the braided shield are held to minute variances. To achieve these tight tolerances, the extrusion and braiding machines must be run at one-quarter speed during the manufacturing process. The result is better performance through a reduction of cable-induced ‘signal jitter’. (Note: Z means impedance)

Manufacturer Site Link: Shunyata Research

Brand: Shunyata ResearchShunyata Research £ 1,500.00


  • Description
  • Specifications
  • Video
  • Downloads
  • Reviews

 ArNi® is a type of wire created by Shunyata Research designed to be the finest quality wire available for audio purposes. It begins with the highest purity of copper available – OFE C10100 or Ohno (single crystal). Then it is formed in virtual hollow tubes eliminating skin effects and eddy current distortions. In addition, the wire undergoes our proprietary KPIP™ process.

Common-node noise is different than differential noise and is much more difficult to measure and eliminate. For the purest signal possible, Shunyata Research has developed a CMode filter that effectively reduces common-mode noise without introducing the sonic compression effects associated with conventional filters. It reduces high-frequency noise distortion while delivering an analog ease and palpable background silence that closes the gap between digital and analog systems. – Reduces common-mode noise

PMZ Connectors

Pulse timing is critical to digital transmission accuracy.  It is critical that a digital connector’s impedance precisely match the cables's characteristic impedance.  A mismatched connector will create signal reflections which increases digital jitter or phase noise. A 50-ohm cable requires a 50-ohm termination — not the commonly used 75-ohm connector. Shunyata Research is careful to ensure that every cable and connector are precisely matched for a seamless component to component connection.

Brand URL : https://shunyata.com

Cable Type: PMZ coaxial

ConductorsArNi ® / Silver

Dielectric: fluorocarbon

Characteristic Impedance: 75 ohms

Connectors: SR-RCAb-75

CMODE Modules: single

KPIP Processing: 4-days

Length: 1.00 meters

Safety Assurance:
Continuity and polarity tests – by two technicians
HiPOT tests insulation breakdown @ 1,200 VAC
