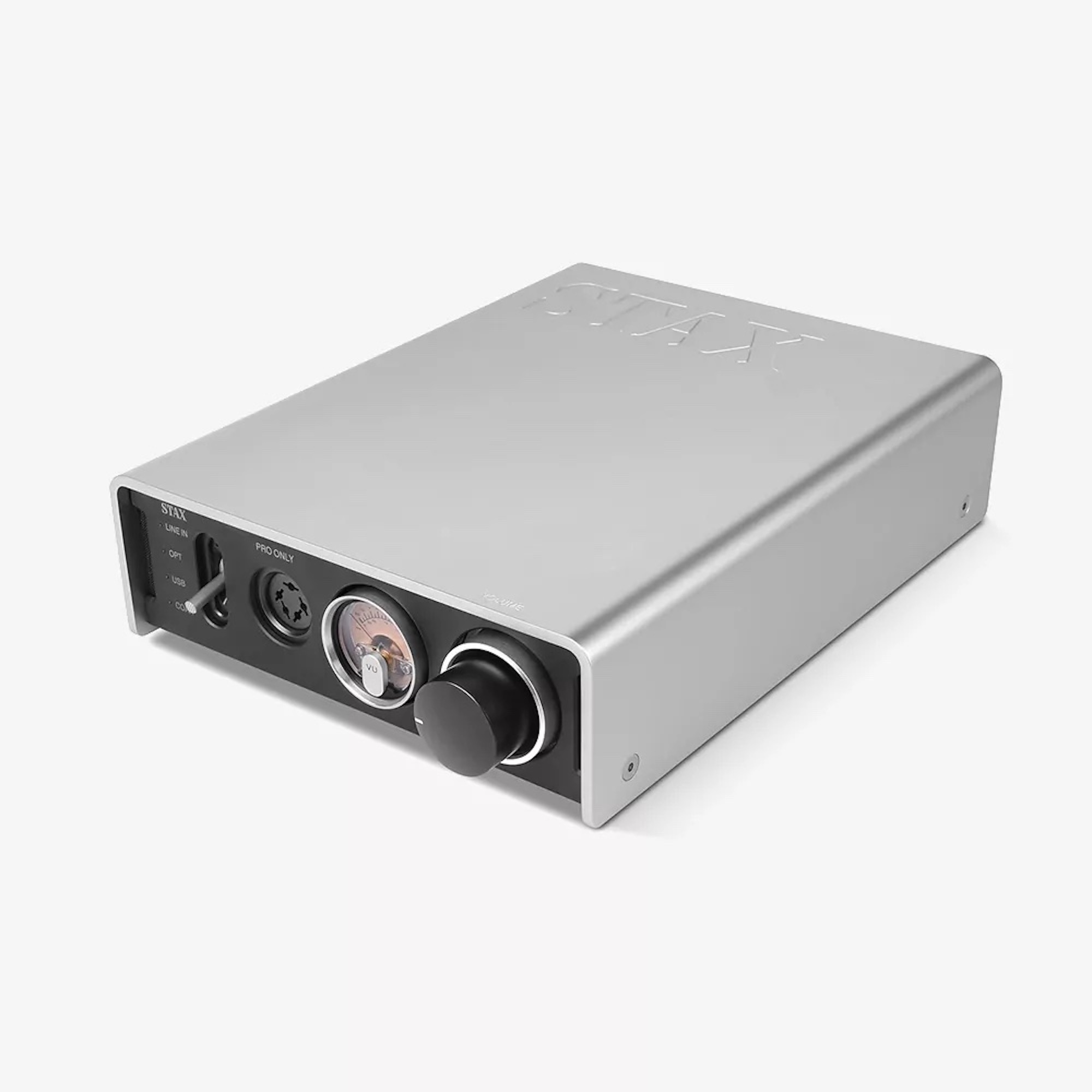

Stax SRM-D50 Driver Unit for Earspeakers

d50
The SRM-D50 is a high-performance electrostatic driver and Digital-to-Analog Converter, inspired by the battery-powered SRM-D10. With an elegant all-in-one design, the D50 creates a simple solution for any music lovers to experience the legendary sound of Stax earspeakers. ...Read more

The SRM-D50 is a high-performance electrostatic driver and Digital-to-Analog Converter, inspired by the battery-powered SRM-D10. With an elegant all-in-one design, the D50 creates a simple solution for any music lovers to experience the legendary sound of Stax earspeakers.

Manufacturer Site Link: Stax

Brand: StaxStax £ 1,145.00


  • Description
  • Specifications
  • Video
  • Downloads
  • Reviews

The aforementioned DAC is a ESS ES9018 DAC coupled with TI OPA1642 ultra low distortion op amp to achieve bit correct signal representation. The D50 also features an XMOS USB interface supports DSD128 playback and PCM stream with up to 384KHz sample rate.

A very versatile energize, the D50 has Multiple input selections including optical fibre and coaxial. The Amplifier circuitry is based on discrete components – heritage from classical STAX amplifier product.

The D50 has a retro feel and look with a voltage meter dancing with input signal provides an enjoyment more than music. Full Aluminium housing with multiple surface processing to achieve velvet feel.

It uses the standard STAX 5Pin connector for all STAX headphones.

Brand URL : https://staxheadphones.com
• Frequency response : DC -40KHz (+0dB, -3dB)
• Rated input level : 130mV (100V output)
• Maximum input level : 30V (minimum volume RCA analog input)
• Gain : 59dB (900 times)
• Harmonic distortion: 0.025% /1KHz-10KHz/ SRL series
• Input impedance: 20KΩ (RCA input)
• Maximum output voltage:  400Vr.m.s (1130Vp-p)
• Bias voltage:  DC 580V
• Rated power consumption: 35W
• Recommended operating temperature:0-35C,  <90% RH (No condensation)
• Signal input:  USB/Optical / Coaxial digital inputs,  RCA analog input
