Its low frequency performance is unequalled. Built with the same standard as the now famous JA80, the JA200 shares its sound consistency and unmatched reliability year after year.

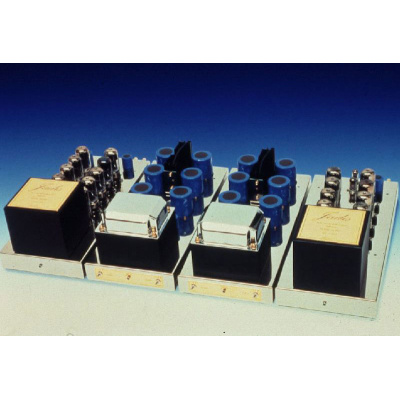

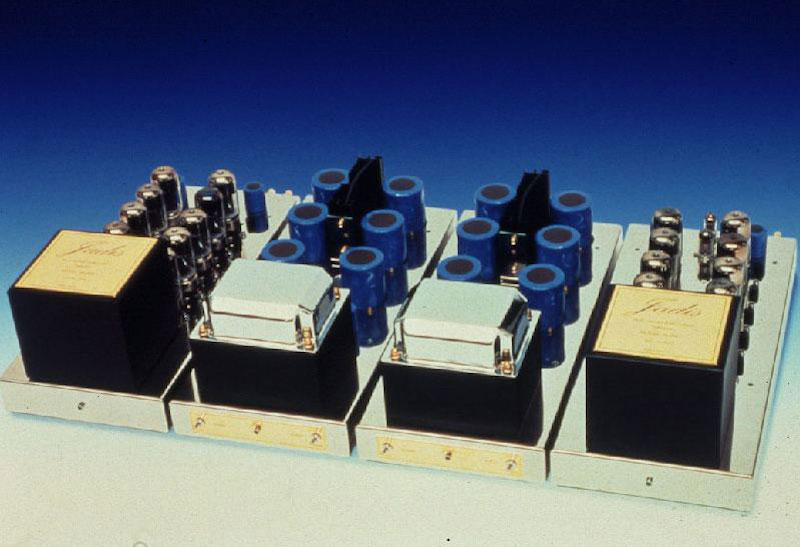

The output stage of the JA200 uses 10 KT88 on each mono amp. For thermal dissipation reasons, the JA200 is built on four chassis : two amplifiers and two power supplies. Each chassis is the size of a JA80 mono amp.
The JA200 will take you where very few have gone before; 160 watts of pure class A power. This four box set of ultimate musicality features two mono-block amplifiers each with its own separate power supply. Probably the last amp you'll ever buy...
Price is per amplifier.
Type | Monoblock pure class A power amplifier |
---|---|
Bias | Automatic |
Power | 160 W |
Bandwidth | 20Hz to 30 kHz |
Sensibility | 1.2 V |
Number of blocks | 4 |
Tubes list | POWER TUBES X 20 ECC82/12AU7 X 2 ECC83/12AX7 X 2 |
Dimensions | 625 x 260 x 240 each block |
Weight | 125Kg |
Consumption | 440 W per channel |
