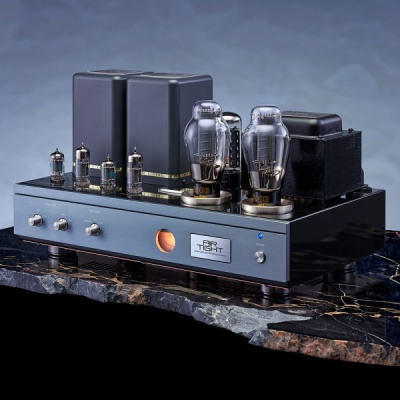

In the book “Illustrated History of High-End Audio” published by “The Absolute Sound”, the ATM-300 was introduced as the model symbolic of the AirTight brand. In 2016, the ATM-300 was completely updated to a limited model, the ‘ATM-300 Anniversary’ celebrating the company’s 30 year history. In 2018, after a period of intensive development, the model was updated again with an uncompromising approach to sonics and the ATM-300R was released. This is designed to be a ‘timeless reference model and the destination of the 300B amplifier’.
AirTight’s design approach has always been to exploit the 300B’s timbral purity, tonal realism and sound staging abilities without allowing any adverse colouration. With the experience of two previous incarnations of the design behind them, AirTight were able to continue to develop and realize the circuit in its ultimate form. Hundreds of hours of component trialling and materials research was completed to create an amplifier with serious long-term reliability and consistency.
The ATM-300R uses traditional point to point wiring and the very best electrolytic capacitors, coupling film capacitors and winding resistors which are mounted on a pure copper sub-chassis board. Seen rarely in amplifiers of any cost, plastic bobbin-less interlaminar transformers are employed for the power transformer and choke coil, made by an orthodox lacquer vacuum impregnation method to minimise vibration so that musical signal modulation is prevented. A slow starter circuit has been employed to protect the 300B’s and 5U4GB rectifying tubes are implemented into this very efficient design.
The ‘R’ in the part number stands for ‘Reference’ and the ATM-300R is often favourably compared to the likes of Kondo, Shindo and other legendary Japanese masterpiece amplifiers. Due to its low power rating, it needs to be matched with an appropriate high efficiency speaker system but once the speaker synergy has been found, you will be rewarded with a magical musical experience that can only be produced by a single ended triode amplifier from the hands of a Japanese master.
Type | Stereo Power Amplifier |
---|---|
Design | Single Ended Triode |
Valves Employed | 300B, 5U4GB |
Rated Power Output | 9W+9W (THD10%) |
THD below | 1% (1kHz / 1W / 8Ω) |
Damping Factor | 7 (1kHz / 1W / 8Ω) |
Frequency Response | 30Hz~40kHz (−1dB / 1W) |
Dimensions | 430mm(W) × 275mm(D) × 245mm(H) |
Weight | 24.5kg |
