The power supply employs a special quick recovery diode as a rectifier that provides a high operational speed with low pulse noise. A parallel connected polypropylene capacitor allows transcendence of modulation noise in the mid to high frequency range.

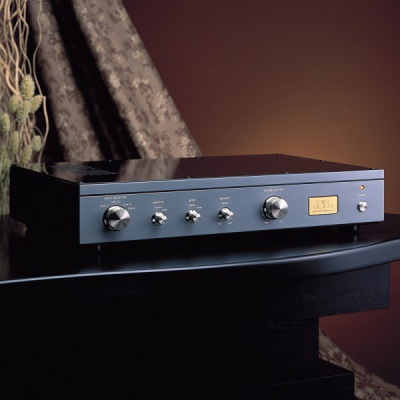

The line amplifier section utilizes the SRPP (Shunt Regulated Push Pull) circuit design which offers excellent power supply noise rejection, low output impedance and improves the linearity of the 12AU7 output tubes. The 2-stage negative feedback configuration uses the 12AX7 in the first stage and the 12AU7 in the second stage (both self-biasing). Since the 12AX7 is biased high, it provides a sense of power and high resolution. The 12AU7 at the output ensures ample current. With this configuration the total gain of the line stage comes up to an impressive 40db. Furthermore, a premium quality coupling capacitor insures an output impedance below 200 Ohms. The ATC-3’s robust construction guarantees long term reliability and sonics that are free of inner modulation distortion.
Music emerges from a totally silent background with authority, clarity and resolution. It is one of those rare audiophile products that users buy and tend to keep for life or replace with the same model. One gets the sense that the ATC-3 is just so accomplished, it is literally in its final form, nothing missing, nothing wanting, just right. Simply get lost in the music and forget you’re listening to an amplifier. Divine.
Type | Stereo Line Preamplifier |
---|---|
Valves Employed | 1 x 12AX7(ECC83), 2 x 12AU7(ECC82) |
Output Voltage | Rated 2V, max 15V |
Output Impedance | 200 Ohms |
THD | Less than 0.01% |
Input Sensitivity | 110mV (output 1V) |
Signal to Noise Ratio | Less than 90dB (IHF-A weighted) |
Dimensions | 430mm(W) × 325mm(D) × 90mm(H) |
Weight | 8kg |
