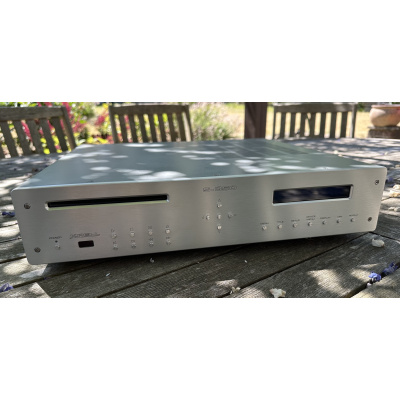

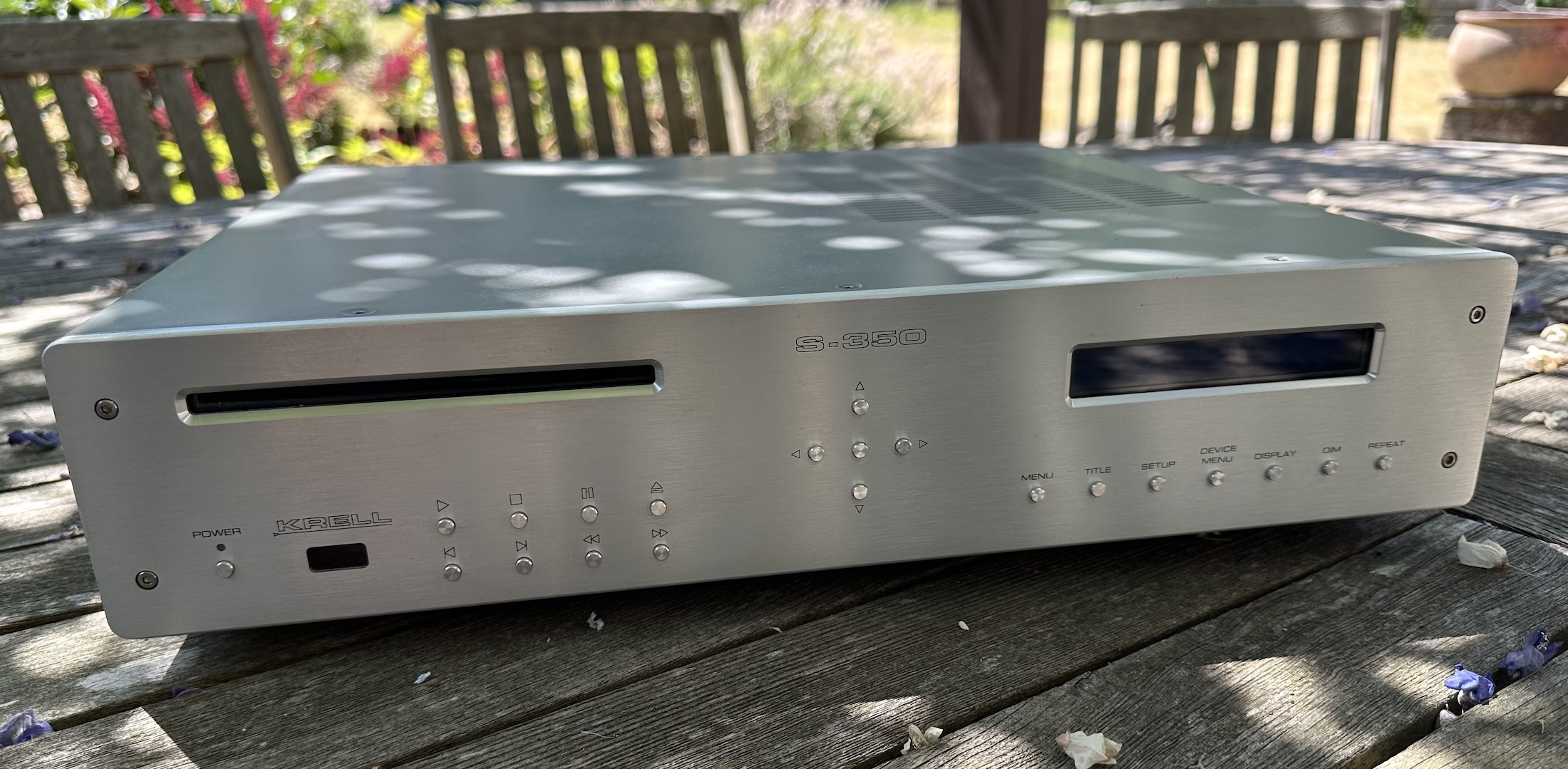

The S-350 CD/DVD Player is a modular design featuring reference caliber CD playback as well as an optional state-of-the-art video engine that provides stunning 1080p
performance and video processing controls. The base model, the S-350a
establishes a new high standard of performance and value among high-end
compact disc players. For home theater systems, the S-350a can be
equipped with a sophisticated 1080p video stage resulting in the S-350av.
Incorporating an advanced TEAC slot load disc transport mechanism (compatible with CD-DA, CD-ROM, DVD-Video, DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW), premium digital
circuitry, Class A analog circuitry, Krell designed anti-jitter master clock, and sophisticated high-linearity power supply, the S-350a delivers performance unequaled by many more expensive players. It is the ideal CD player for the serious music lover.
Matched Burr-Brown DSD 1793 24-bit, 192 kHz digital-to-analog converters for each channel provide fully balanced operation with exceptional reproduction quality. The analog stage features Krell Current Mode, discrete Class A, direct coupled, fully complementary circuitry.
A coaxial and toslink digital input extends the S-350cd's digital to analog conversion circuitry to two additional audio sources. 12VDC trigger input/output ports enable connections for remote power on/off.
An RC-5 interface is provided for remote control system integration. A
metal handheld remote control is included.
TheS-350a complements the S-300i integrated amplifier both in industrial
design and sonic performance - a treat for the eyes and a feast for the
ears.
Theopen architecture of the S-350a allows for the addition of a
sophisticated video circuit stage that creates a new DVD player model:
S-350av.
Optimized for the latest solid-state
video display technologies including LED, LCD, DLP, and DILA, the
S-350av includes a full complement of outputs. Video outputs include
HDMI with resolution up to 1080p, Component with a maximum resolution
of 1080i, as well as composite and S-Video outputs.
The crucial final stage that delivers the video signal to the display
device comprises professional-grade circuitry. It is classic Krell
output stage technology applied to the video domain-robust,
uncompromising circuitry delivering the most vivid and detailed picture
available for the DVD platform.
Total harmonic distortion 20Hz - 20kHz 0.007%
Signl-to-noise ratio 109dB "A" wtd.
Frequencey Response 20Hz - 20kHz +0/-0.2dB
Drive Mechanism Teac
DAC Burr-Brown DSD1793 24-bit, 19kHz
Analog Audio Outputs Differential current-mode gain stage, discrete, DC coupled
Digital Audio Outputs One each, coax and Toslink, up to 96kHz
Digital Audio Inputs One each, coax and Toslink, up to 96kHz
Power Supply Toroidal transformer, seperate analog and digital supplies, analog regulation is all discrete
HDMI Out W/HDCP 480i, 576i, 480p, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50, 1080p60
Component Out 1Vp-p 480i, 576i, 480p, 576p, 720p50, 720p60, 1080i50, 1080i60
Composite Out 1Vp-p NTSC, PAL
S-Video Out 1Vp-p NTSC, PAL
Video Adjustments SD outputs: brightness, contrast, saturation, hue, sharpness
Video Adjustments HD outputs: brightness, contrast, saturation, hue, sharpness
Disc Media CD-DA, CD-ROM, DVD-Video, DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW
Formats Dolby Digital, DTS, CD audio, MP3, WAV
Power Consumption 11W stand-by, 24W operate
Dimension 17.26"W x 4.09"H x 17.70"D
438mmW x 104mmH x 450mmD
Weight (unit only) 25 lbs
11.4 kg
