This preamplifier was the pinnacle of Mark Levinson's products, this one has the optional phono stage fitted and is therefore very rare to the UK market. It is one owner from new and is in exceptional condition. It comes in the original manufacturers packaging and includes the remote control. It has the separate power supply also boxed and frankly if i didn't have more equipment than I could shake a stick at, I would be keeping this for myself. It is being sold on behalf of the owner and will have 3 months warranty.

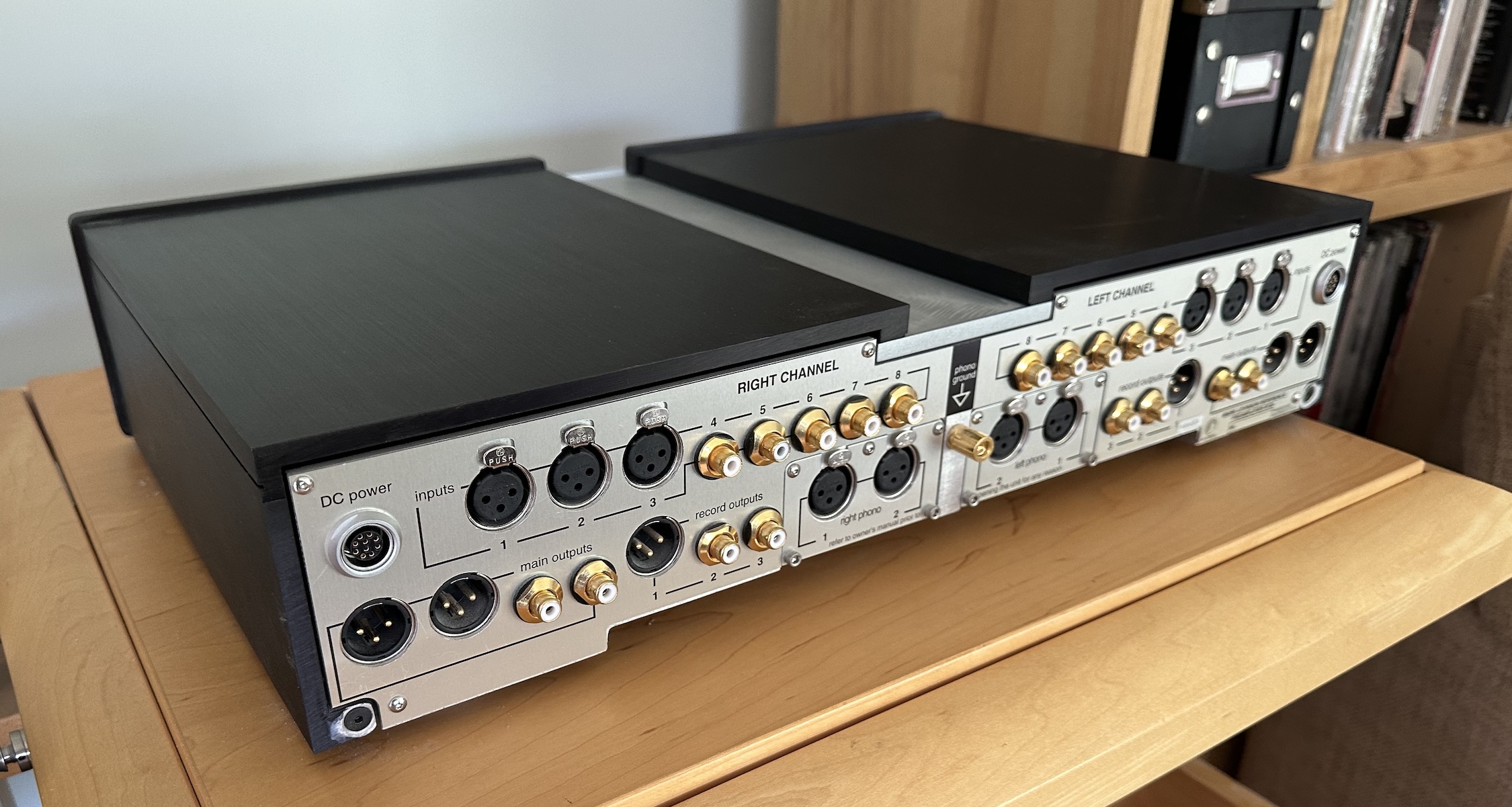

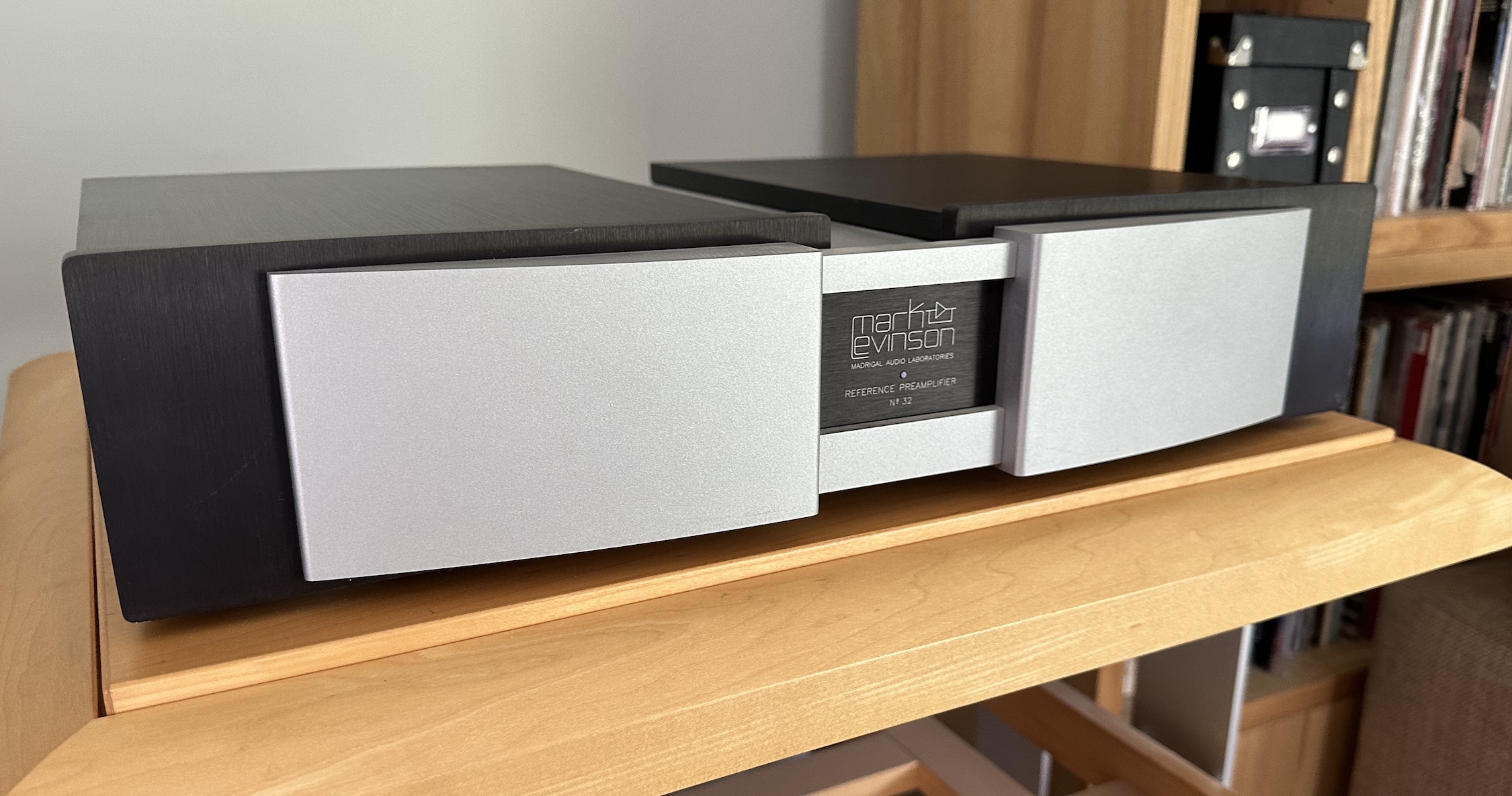

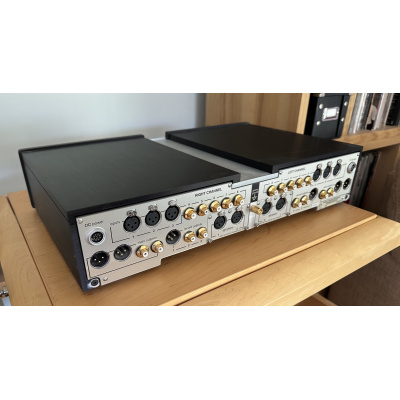

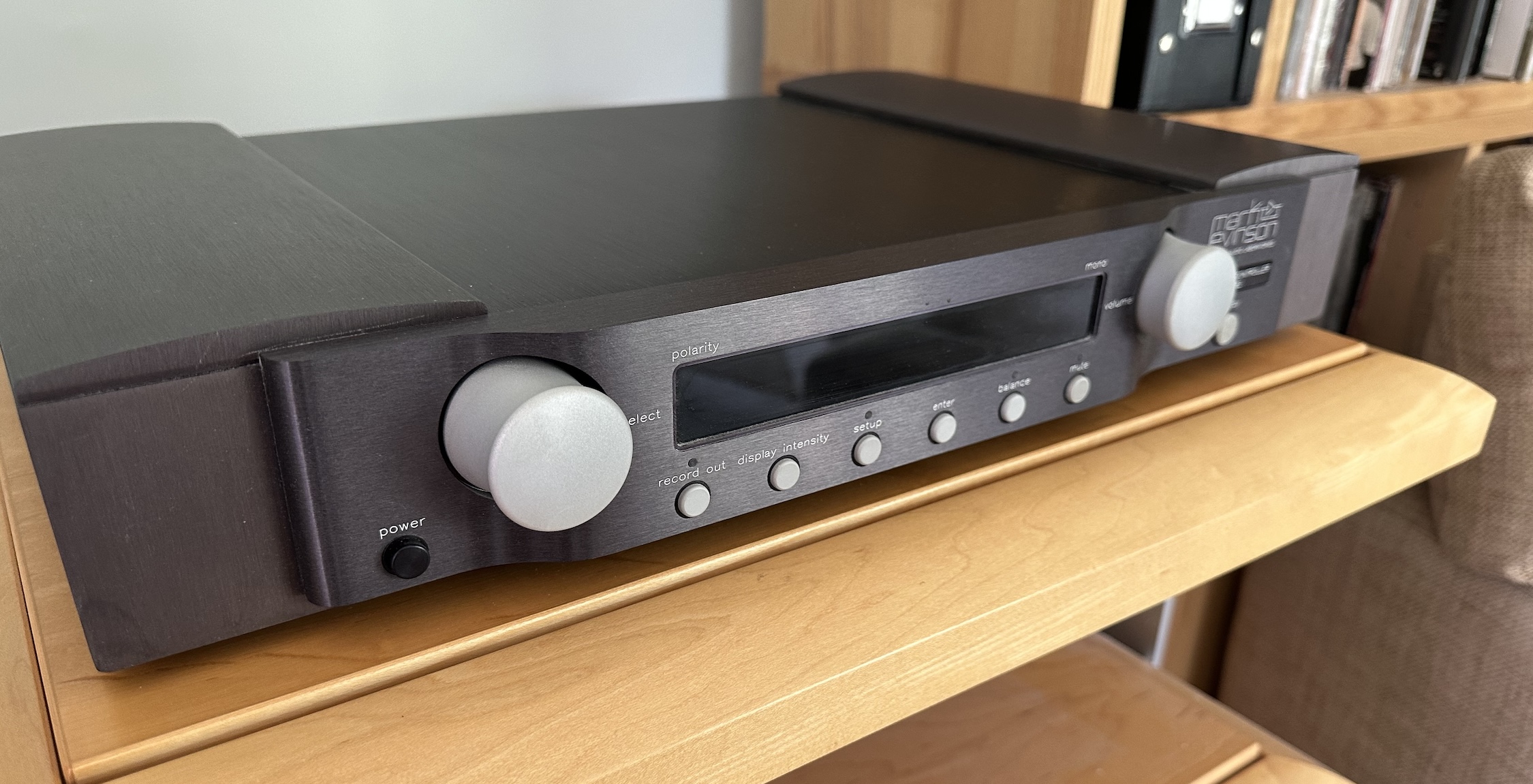

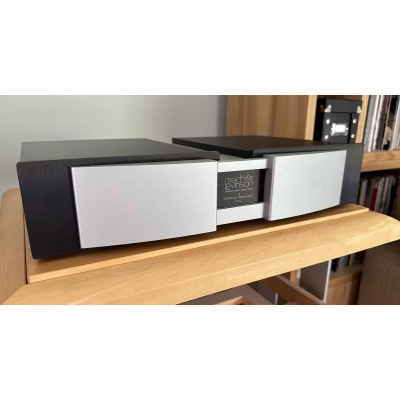

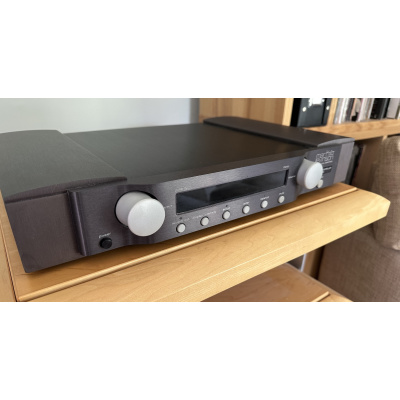

Click on the image to get larger and additional pictures.
Power Consumption: 150W maximum
Operating voltage: 100V, 120V, 220V, 230V, or 240VAC @ 50 or 60Hz (preset)

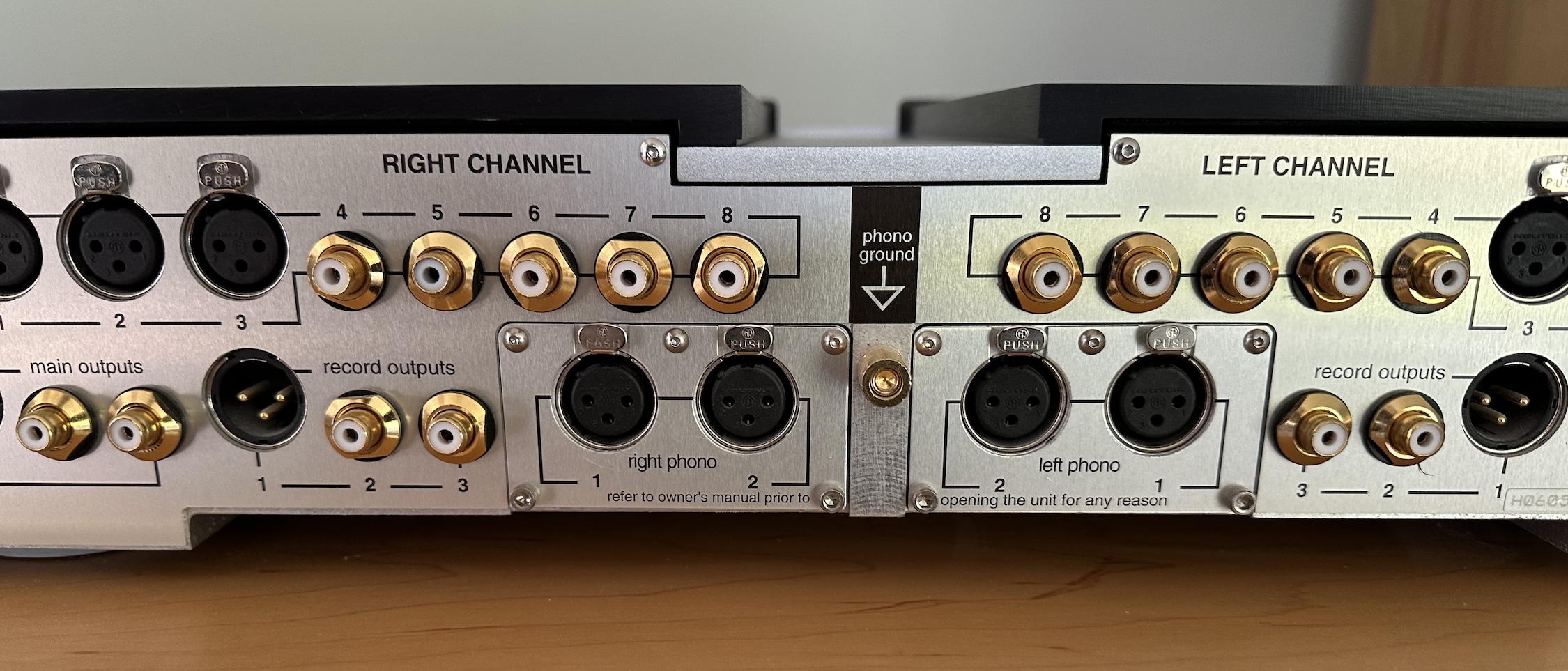

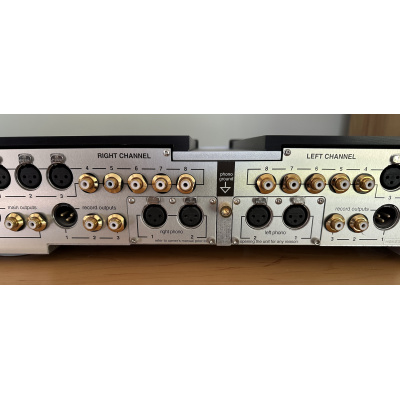

Preamplifier Connectors: (3) balanced stereo inputs (female XLR)
(5) unbalanced stereo inputs (RCA)
(2) balanced main stereo outputs (male XLR)
(2) unbalanced main stereo outputs (RCA)
(1) balanced record stereo output (male XLR)
(2) unbalanced record stereo outputs (RCA)
(1) earth-reference ground terminal
(2) DC power connectors
Controller Connectors: (1) IEC-standard AC mains receptacle
(1) IR input (1/8-inch/3.5mm mini-jack)
(1) trigger input (1/8-inch/3.5mm mini-jack)
(1) trigger output (1/8-inch/3.5mm mini-jack)
(3) Link communication ports (RJ-45)
(1) RS-232 port (RJ-11)
(2) control ports (RJ-45)
(1) earth-reference ground terminal
(2) DC power connectors
Input Overload:
When gain is set to +18dB: When gain is set to +12dB: When gain is set to +6dB: When gain is set to +0dB: 2V on XLR, 1V on RCA
4V on XLR, 2V on RCA
8V on XLR, 4V on RCA
16V on XLR, 8V on RCA
Input Impedance: 100kΩ
Output Impedance: 10Ω on balance (XLR)
20Ω on unbalanced (RCA)
Maximum Main Output: 16V on balanced (XLR)
8V on unbalanced (RCA)
THD + N: 0.001% blanced
Crosstalk: 120dB (anyinput to any output, input unterminated)
140dB (any input to any output, input terminated)
Residual Noise: 120dB (20Hz to 0kHz, input terminated) balanced
Frequency Response: 10Hz to 40kHz (±0.2dB)
Overall Dimensions: Controller Preamplifier
width: 19.5" (49.5cm) width: 19.5" (49.5cm)
height: 3.03" (7.68cm) height: 3.19" (8.09cm)
depth: 12.96" (32.91cm) depth: 11.39" (28.92cm)
Shipping Weight: Controller Preamplifier
60lbs. (27kg) 46lbs. (21kg)
